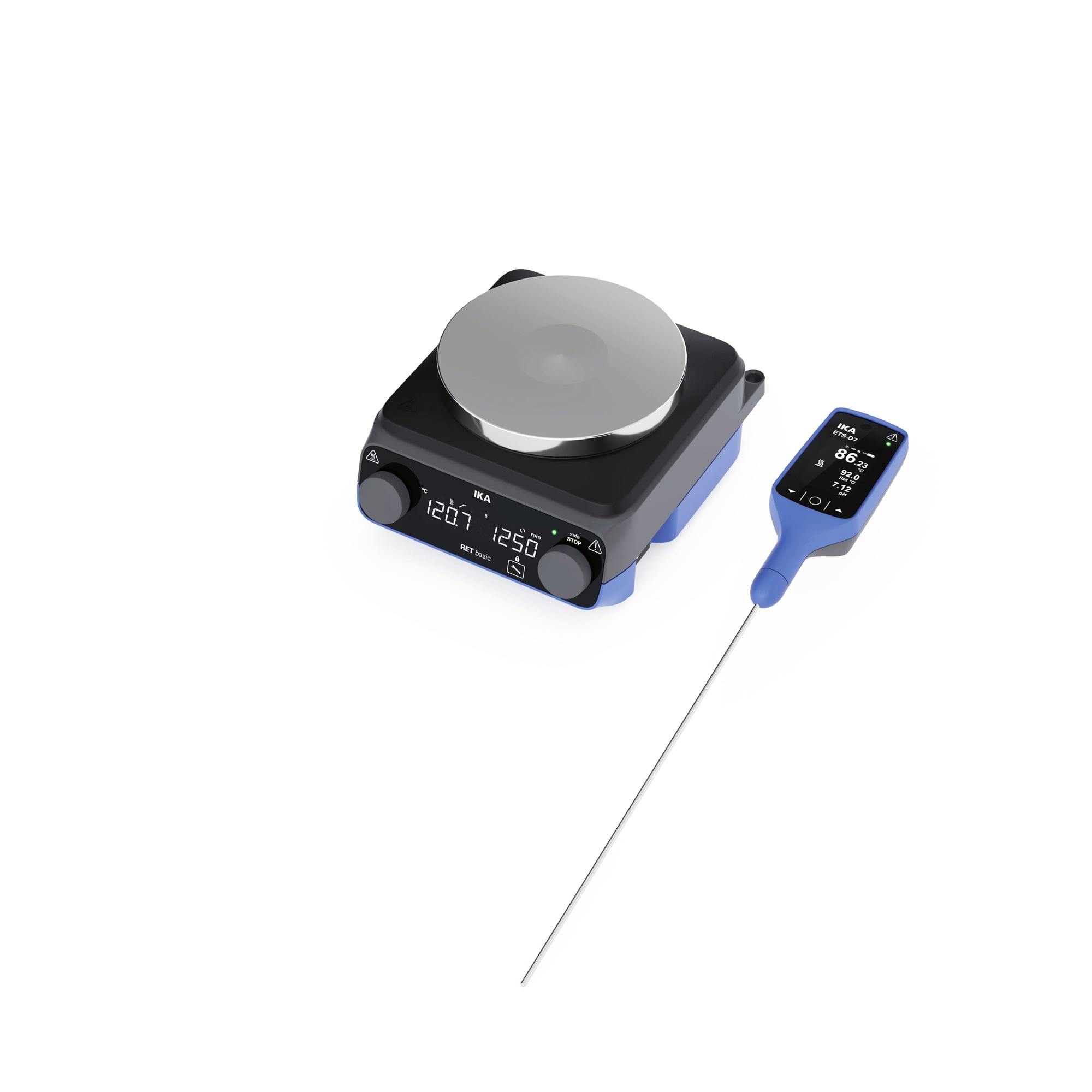

RET basic ETS-D7 Solution

producentIKA
nr katalogowy10016577

Filtr: z ogrzewaniem bez ogrzewania Wiele lokalizacji Interfejs RS 232 zew. czujnik temperatury

RET basic ETS-D7 Solution More functions, more flexibility – wireless and safe The RET basic ETS-D7 Solution expands the trusted RCT basic with additional functions for wireless temperature and pH measurement. The system combines precise measurement technology with enhanced safety and maximum flexibility in everyday laboratory work. A pH electrode can be connected to the ETS-D7 via a BNC connector. The pH value is displayed directly on the ETS-D7 screen. Additionally, the pH value can also be displayed on the RET basic screen. If required, the ETS-D7 can also be used without the RET basic as a standalone pH meter or temperature measuring device. Another advantage of wireless sensor technology: No cables on the temperature sensor – damaged or burnt sensor cables are a thing of the past. Increased safety through dual temperature measurement In combination with the wired temperature sensor PT 1000.60, which is also included in the scope of delivery, two temperatures can be measured simultaneously: PT 1000.60 (wired): Monitoring and limiting the temperature of a heat transfer medium, e.g. synthesis block, oil, water or sand bathETS-D7: Temperature control directly within the reaction medium This configuration enhances the safety of the experiment, particularly in the event of glass breakage. The RET basic automatically displays both temperatures in parallel on the screen. Complete solution including mounting hardware To ensure safe and flexible positioning of the wireless sensor, the complete mounting hardware is included in the scope of delivery (stand, mounting rod and boss head clamp). Zakres dostawy RET basic IKAFLON® 30 Magnetic stirring bar IKAFLON® 40 Magnetic stirring bar ETS-D7 Wireless Sensor H 16 V Kolumna statywu Czujnik temperatury, stal nierdzewna PT 1000.60 H 38 Uchwyt H 44 Łącznik krzyżowy H 80 Temperature sensor holder Screwdriver

Potrzebujesz dodatkowych informacji?

Zadaj nam pytanie o ten produkt — chętnie pomożemy.

cena: cena na żądanie

wyszukaj podobne produkty: 10016577

właściwości

automatyczna zmiana kierunku obrotówoptional (with IKA HUB)
ciężar2.3 kg
czas zadany maks.5999 min
czas zadany min.1 s
częstotliwość50/60 Hz
dokładność nastawy prędkości10 rpm
dokładność regulacji ogrzewania z czujnikiem zewn. pt1000 (500 ml h2o w zlewce 600 ml, dipol magnetyczny 40 mm, 600 obr./min, 50°C)±0.5 K
dokładność regulacji ogrzewania z ets-d5. (500 ml h2o w zlewce 600 ml, dipol magnetyczny 40 mm, 600 obr./min, 50°C)±0.5 K
dokładność wskazań0.1 K
dopuszczalna temperatura otoczenia5 - 40 °C
dopuszczalna wilgotność względna80 %
długość dipola magnetycznego20 - 80 mm
funkcja samoczynnego podgrzewania płyty grzejnej do maks. prędkości mieszania (od r.t. do 22°c / czas 1 h)+15 K
dokładność kontroli temperatury środka płyty grzewczej bez naczynia (przy 100°C)±5 K
dokładność regulacji ogrzewania z ets-d7 (500 ml H2O w zlewce 600 ml, mieszadło 40 mm, 600 obr./min, 50°C)±0.2 K
dokładność regulacji ogrzewania z pt bezprzewodowym (500 ml H2O w zlewce 600 ml, mieszadło 40 mm, 600 obr./min, 50°C)±0.2 K
interfejs ethernettak
interfejs rs 232tak
interfejs usbUSB-C
interfejs wifitak
interfejs wpantak
jednostka temperatury°C
kierunek obrotówprawy
klasa ochrony wg din en 60529IP 54
liczba stanowisk mieszania1
maks. objętość mieszania na stanowisko mieszania (h2o)20 l
maksymalne obciążenie25 kg
materiał płyty roboczejStop aluminium
min. temperatura robocza (z chłodzeniem zewnętrznym)-20 °C
moc grzewcza800 W
moc wyjściowa silnika9 W
napięcie220–230 V
odchyłka prędkości (bez obciążenia, napięcie znamionowe, 1500 obr./min, + 25°C)±2 %
pomiar phoptional (with ETS-D7, PT wireless)
pomiar przebiegu lepkościoptional (with IKA HUB)
programator czasowytak
programyoptional (with IKA HUB)
przyłącze zewn. czujnika temperaturyPT1000, ETS-D5, ETS-D7, PT wireless
prędkość ogrzewania (1 l h2o w h1500)9 K/min
regulacja ogrzewaniaControl knob (Rotating / Pressing)
regulacja prędkościControl knob (Rotating / Pressing)
regulowana temperatura bezpieczeństwa50 - 360 °C
rozdzielczość temperatury zadanej czynnika0.1 K
rozdzielczość temperatury zadanej płyty grzejnej1 K
tryb okresowyoptional (with IKA HUB)
wahania pt 1000 – din en 60751, klasa a≤ ± (0.15 +0.002xITI) K
wartość rzeczywista na wyświetlaczu prędkościLED
wartość zadana na wyświetlaczu prędkościLED
wartość zadana na wyświetlaczu temperaturyLED
wartość zadana rzeczywista wyświetlaczu temperaturyLED
wskaźnik programatora czasowegoLED
wykrywanie czujnika w ośrodkutak
wykrywanie pęknięcia dipolaoptional (with IKA HUB)
wymiary (szer. × wys. × gł.)160 x 100 x 200 mm
wymiary płyty roboczejØ 135 mm
zakres obrotów50 - 1700 rpm
zakres pomiaru temperatury pt1000-20 - 340 °C
zakres temperatur grzaniatemp. pokojowa + samoogrzewanie przyrządu - 340 °C
zakres temperatury zadanej0 - 340 °C
zasada działania silnikaBezszczotkowy, DC
zasilanie820 W
zasilanie (w trybie gotowości)0.45 W

Akcesoria i produkty kompatybilne

Documents for qualification LAB Documents for qualification LAB IKA 10006577 Factory Calibration Certificate LAB Factory Calibration Certificate LAB IKA 10006579 IQ/OQ Documentation LAB IQ/OQ Documentation LAB IKA 10006581 General Certificates (2.2 / 3.1) LAB General Certificates (2.2 / 3.1) LAB IKA 10010524 Qualification Execution (IQ/OQ) LAB Qualification Execution (IQ/OQ) LAB IKA 10010802 PT 1000.60, Temp. sensor, stn. steel, Ø3 mm, 230 mm PT 1000.60, Temp. sensor, stn. steel, Ø3 mm, 230 mm IKA 3516800 PT 1000.70, Temp. sensor, stn. steel, glass-coated, Ø7mm, 230 mm PT 1000.70, Temp. sensor, stn. steel, glass-coated, Ø7mm, 230 mm IKA 3736000 PT 1000.80, Temp. sensor, stn. steel, Ø3 mm, 150 mm PT 1000.80, Temp. sensor, stn. steel, Ø3 mm, 150 mm IKA 4443000 PT 1000.90, Temp. sensor, stn. steel, coated, Ø3 mm, 230 mm PT 1000.90, Temp. sensor, stn. steel, coated, Ø3 mm, 230 mm IKA 4480600 ETS-D7, Temp. sensor with display, wireless, stn. steel ETS-D7, Temp. sensor with display, wireless, stn. steel IKA 25008370 PT wireless, Temp. sensor, wireless, stn. steel PT wireless, Temp. sensor, wireless, stn. steel IKA 25008369 ETS-D5, Electronic contact thermometer ETS-D5, Electronic contact thermometer IKA 25008371 H 135.10, Square carrier without handle H 135.10, Square carrier without handle IKA 25000832 H 135.11, Square carrier with handle H 135.11, Square carrier with handle IKA 4448200 H 135.101, Block 16 x 4 ml H 135.101, Block 16 x 4 ml IKA 25000626 H 135.102, Block 16 x 8 ml H 135.102, Block 16 x 8 ml IKA 25000627 H 135.103, Block 9 x 16 ml H 135.103, Block 9 x 16 ml IKA 25000628 H 135.104, Block 4 x 20 ml H 135.104, Block 4 x 20 ml IKA 25000629 H 135.105, Block 4 x 30 ml H 135.105, Block 4 x 30 ml IKA 25000630 H 135.106, Block 4 x 40 ml H 135.106, Block 4 x 40 ml IKA 25000631 H 135.107, Block 100 ml H 135.107, Block 100 ml IKA 25000632 H 135.108, Block 250 ml H 135.108, Block 250 ml IKA 25000633 H 135.20, Flask carrier 100 ml without handle H 135.20, Flask carrier 100 ml without handle IKA 25000634 H 135.21, Flask carrier 100 ml with handle H 135.21, Flask carrier 100 ml with handle IKA 4448300 H 135.201, Flask inlay 10 ml H 135.201, Flask inlay 10 ml IKA 25000636 H 135.202, Flask inlay 25 ml H 135.202, Flask inlay 25 ml IKA 25000637 H 135.203, Flask inlay 50 ml H 135.203, Flask inlay 50 ml IKA 25000638 H 135.25, Flask carrier 250 ml without handle H 135.25, Flask carrier 250 ml without handle IKA 25003280 H 135.26, Flask carrier 250 ml with handle H 135.26, Flask carrier 250 ml with handle IKA 20007954 H 135.30, Flask carrier 500 ml without handle H 135.30, Flask carrier 500 ml without handle IKA 25000639 H 135.31, Flask carrier 500 ml with handle H 135.31, Flask carrier 500 ml with handle IKA 4448400 H 135.301, Flask inlay 100 ml H 135.301, Flask inlay 100 ml IKA 25000641 H 135.302, Flask inlay 250 ml H 135.302, Flask inlay 250 ml IKA 25000642 H 135.40, Flask carrier 1000 ml without handle H 135.40, Flask carrier 1000 ml without handle IKA 25000833 H 135.41, Flask carrier 1000 ml with handle H 135.41, Flask carrier 1000 ml with handle IKA 4448500 H 135.401, Flask inlay 500 ml H 135.401, Flask inlay 500 ml IKA 25000644 H 135.50, Flask carrier 2000 ml without handle H 135.50, Flask carrier 2000 ml without handle IKA 25000834 H 135.51, Flask carrier 2000 ml with handle H 135.51, Flask carrier 2000 ml with handle IKA 4448600 H 135.501, Flask inlay 1000 ml H 135.501, Flask inlay 1000 ml IKA 25000645 IKAFLON 10 round, Magnetic stirring bar, round, 10 x 6 mm, 5 pcs. IKAFLON 10 round, Magnetic stirring bar, round, 10 x 6 mm, 5 pcs. IKA 4488600 IKAFLON 15 round, Magnetic stirring bar, round, 15 x 6 mm, 5 pcs. IKAFLON 15 round, Magnetic stirring bar, round, 15 x 6 mm, 5 pcs. IKA 4488700 IKAFLON 20 round, Magnetic stirring bar, round, 20 x 8 mm, 5 pcs. IKAFLON 20 round, Magnetic stirring bar, round, 20 x 8 mm, 5 pcs. IKA 4488800 IKAFLON 80 round, Magnetic stirring bar, round, 80 x 10 mm, 5 pcs. IKAFLON 80 round, Magnetic stirring bar, round, 80 x 10 mm, 5 pcs. IKA 4489300 IKAFLON 50 round, Magnetic stirring bar, round, 50 x 8 mm, 5 pcs. IKAFLON 50 round, Magnetic stirring bar, round, 50 x 8 mm, 5 pcs. IKA 4489200 IKAFLON 40 round, Magnetic stirring bar, round, 40 x 8 mm, 5 pcs. IKAFLON 40 round, Magnetic stirring bar, round, 40 x 8 mm, 5 pcs. IKA 4489100 IKAFLON 30 round, Magnetic stirring bar, round, 30 x 8 mm, 5 pcs. IKAFLON 30 round, Magnetic stirring bar, round, 30 x 8 mm, 5 pcs. IKA 4489000 IKAFLON 25 round, Magnetic stirring bar, round, 25 x 8 mm, 5 pcs. IKAFLON 25 round, Magnetic stirring bar, round, 25 x 8 mm, 5 pcs. IKA 4488900 IKAFLON 20 ellipse, Magnetic stirring bar, ellipse, 20 x 10 mm, 5 pcs. IKAFLON 20 ellipse, Magnetic stirring bar, ellipse, 20 x 10 mm, 5 pcs. IKA 4494600 IKAFLON 25 ellipse, Magnetic stirring bar, ellipse, 25 x 12 mm, 5 pcs. IKAFLON 25 ellipse, Magnetic stirring bar, ellipse, 25 x 12 mm, 5 pcs. IKA 4494800 IKAFLON 30 ellipse, Magnetic stirring bar, ellipse, 32 x 16 mm, 5 pcs. IKAFLON 30 ellipse, Magnetic stirring bar, ellipse, 32 x 16 mm, 5 pcs. IKA 4495000 IKAFLON 35 ellipse, Magnetic stirring bar, ellipse, 35 x 15 mm, 5 pcs. IKAFLON 35 ellipse, Magnetic stirring bar, ellipse, 35 x 15 mm, 5 pcs. IKA 4495200 IKAFLON 70 ellipse, Magnetic stirring bar, ellipse, 70 x 20 mm, 5 pcs. IKAFLON 70 ellipse, Magnetic stirring bar, ellipse, 70 x 20 mm, 5 pcs. IKA 4496000 IKAFLON 50 ellipse, Magnetic stirring bar, ellipse, 50 x 20 mm, 5 pcs. IKAFLON 50 ellipse, Magnetic stirring bar, ellipse, 50 x 20 mm, 5 pcs. IKA 4495600 IKAFLON 40 ellipse, Magnetic stirring bar, ellipse, 40 x 20 mm, 5 pcs. IKAFLON 40 ellipse, Magnetic stirring bar, ellipse, 40 x 20 mm, 5 pcs. IKA 4495400 TRIKA 80, Magnetic stirring bar, TRIKA, 80 x 17 mm, 5 pcs. TRIKA 80, Magnetic stirring bar, TRIKA, 80 x 17 mm, 5 pcs. IKA 4499600 TRIKA 55, Magnetic stirring bar, TRIKA, 55 x 14 mm, 5 pcs. TRIKA 55, Magnetic stirring bar, TRIKA, 55 x 14 mm, 5 pcs. IKA 4499500 TRIKA 35, Magnetic stirring bar, TRIKA, 35 x 9 mm, 5 pcs. TRIKA 35, Magnetic stirring bar, TRIKA, 35 x 9 mm, 5 pcs. IKA 4499400 TRIKA 25, Magnetic stirring bar, TRIKA, 25 x 8 mm, 5 pcs. TRIKA 25, Magnetic stirring bar, TRIKA, 25 x 8 mm, 5 pcs. IKA 4499300 IKAFLON 25 cross, Magnetic stirring bar, cross, 25 x 25 mm, 5 pcs. IKAFLON 25 cross, Magnetic stirring bar, cross, 25 x 25 mm, 5 pcs. IKA 4496600 IKAFLON 38 cross, Magnetic stirring bar, cross, 38 x 38 mm, 5 pcs. IKAFLON 38 cross, Magnetic stirring bar, cross, 38 x 38 mm, 5 pcs. IKA 4497000 IKAFLON 30 cross, Magnetic stirring bar, cross, 30 x 30 mm, 5 pcs. IKAFLON 30 cross, Magnetic stirring bar, cross, 30 x 30 mm, 5 pcs. IKA 4496800 IKAFLON 20 cross, Magnetic stirring bar, cross, 20 x 20 mm, 5 pcs. IKAFLON 20 cross, Magnetic stirring bar, cross, 20 x 20 mm, 5 pcs. IKA 4496400 IKAFLON 10 cross, Magnetic stirring bar, cross, 10 x 10 mm, 5 pcs. IKAFLON 10 cross, Magnetic stirring bar, cross, 10 x 10 mm, 5 pcs. IKA 4496200 IKAFLON 30 slide round, Magnetic stirring bar, slide round, 30 x 6 mm, 5 pcs. IKAFLON 30 slide round, Magnetic stirring bar, slide round, 30 x 6 mm, 5 pcs. IKA 4494000 IKAFLON 40 slide round, Magnetic stirring bar, slide round, 40 x 8 mm, 5 pcs. IKAFLON 40 slide round, Magnetic stirring bar, slide round, 40 x 8 mm, 5 pcs. IKA 4494200 IKAFLON 50 slide round, Magnetic stirring bar, slide round, 50 x 8 mm, 5 pcs. IKAFLON 50 slide round, Magnetic stirring bar, slide round, 50 x 8 mm, 5 pcs. IKA 4494400 IKAFLON 25 slide round, Magnetic stirring bar, slide round, 25 x 6 mm, 5 pcs. IKAFLON 25 slide round, Magnetic stirring bar, slide round, 25 x 6 mm, 5 pcs. IKA 4493800 IKAFLON 50 power, Magnetic stirring bar, power, 50 x 8 mm, 5 pcs. IKAFLON 50 power, Magnetic stirring bar, power, 50 x 8 mm, 5 pcs. IKA 4493400 IKAFLON 30 power, Magnetic stirring bar, power, 30 x 6 mm, 5 pcs. IKAFLON 30 power, Magnetic stirring bar, power, 30 x 6 mm, 5 pcs. IKA 4493200 IKAFLON 20 power, Magnetic stirring bar, power, 20 x 6 mm, 5 pcs. IKAFLON 20 power, Magnetic stirring bar, power, 20 x 6 mm, 5 pcs. IKA 4493000 IKAFLON 54 bone, Magnetic stirring bar, bone, 55 x 8 x 20 mm, 5 pcs. IKAFLON 54 bone, Magnetic stirring bar, bone, 55 x 8 x 20 mm, 5 pcs. IKA 4497400 RS 2, Set of magnetic stirring bars RS 2, Set of magnetic stirring bars IKA 4499100 IKAFLON 9 crown, Magnetic stirring bar, crown, 9 x 6 mm, 5 pcs. IKAFLON 9 crown, Magnetic stirring bar, crown, 9 x 6 mm, 5 pcs. IKA 4498400 IKAFLON 74 beaker, Magnetic stirring bar, beaker, 74 x 29 mm IKAFLON 74 beaker, Magnetic stirring bar, beaker, 74 x 29 mm IKA 4497800 IKAFLON 37 bone, Magnetic stirring bar, bone, 35 x 8 x 20 mm, 5 pcs. IKAFLON 37 bone, Magnetic stirring bar, bone, 35 x 8 x 20 mm, 5 pcs. IKA 4497200 RS 1, Set of magnetic stirring bars RS 1, Set of magnetic stirring bars IKA 1358600 IKAFLON 40 glass round, Magnetic stirring bar, round, glass, 40 x 8 mm, 5 pcs. IKAFLON 40 glass round, Magnetic stirring bar, round, glass, 40 x 8 mm, 5 pcs. IKA 4492600 IKAFLON 25 glass round, Magnetic stirring bar, round, glass, 25 x 6 mm, 5 pcs. IKAFLON 25 glass round, Magnetic stirring bar, round, glass, 25 x 6 mm, 5 pcs. IKA 4492200 IKAFLON 50 glass round, Magnetic stirring bar, round, glass, 50 x 8 mm, 5 pcs. IKAFLON 50 glass round, Magnetic stirring bar, round, glass, 50 x 8 mm, 5 pcs. IKA 4492800 H 29, Oil bath attachment, 1 l H 29, Oil bath attachment, 1 l IKA 2829400 H 30, Oil bath attachment, 1.5 l H 30, Oil bath attachment, 1.5 l IKA 2829500 HG 600, Heating jacket for beaker 600 ml HG 600, Heating jacket for beaker 600 ml IKA 20003416 HG 1000, Heating jacket for beaker 1000 ml HG 1000, Heating jacket for beaker 1000 ml IKA 20003415 H 44, Boss head clamp H 44, Boss head clamp IKA 2437700 LABLIFT m, Manual scissor lift LABLIFT m, Manual scissor lift IKA 4022400 R 350, Universal clamp R 350, Universal clamp IKA 1752900 H 16 V, Support rod H 16 V, Support rod IKA 1545100 H 16.3, Extension for support rod H 16.3, Extension for support rod IKA 25000622 H 38, Holding rod H 38, Holding rod IKA 3547700 H 80, Temp. sensor holder H 80, Temp. sensor holder IKA 20122350 Labworldsoft 6 Lite, Laboratory software - download Labworldsoft 6 Lite, Laboratory software - download IKA 20017364 Labworldsoft 6 Pro, Laboratory software - download Labworldsoft 6 Pro, Laboratory software - download IKA 20017366 Labworldsoft 6 Starter, Laboratory software - download Labworldsoft 6 Starter, Laboratory software - download IKA 20019397 RSE, Stirring bar remover RSE, Stirring bar remover IKA 1293100 H 11 (EURO), Mains cable, spare H 11 (EURO), Mains cable, spare IKA 1091500 H 11 Przewód sieciowy z wtyczką chińską H 11 Przewód sieciowy z wtyczką chińską IKA 1091600 H 11 Przewód sieciowy z wtyczką brytyjską H 11 Przewód sieciowy z wtyczką brytyjską IKA 2410700 H 11 Przewód sieciowy z wtyczką amerykańską H 11 Przewód sieciowy z wtyczką amerykańską IKA 3564500 BC 1000, Beaker cap BC 1000, Beaker cap IKA 20003417
