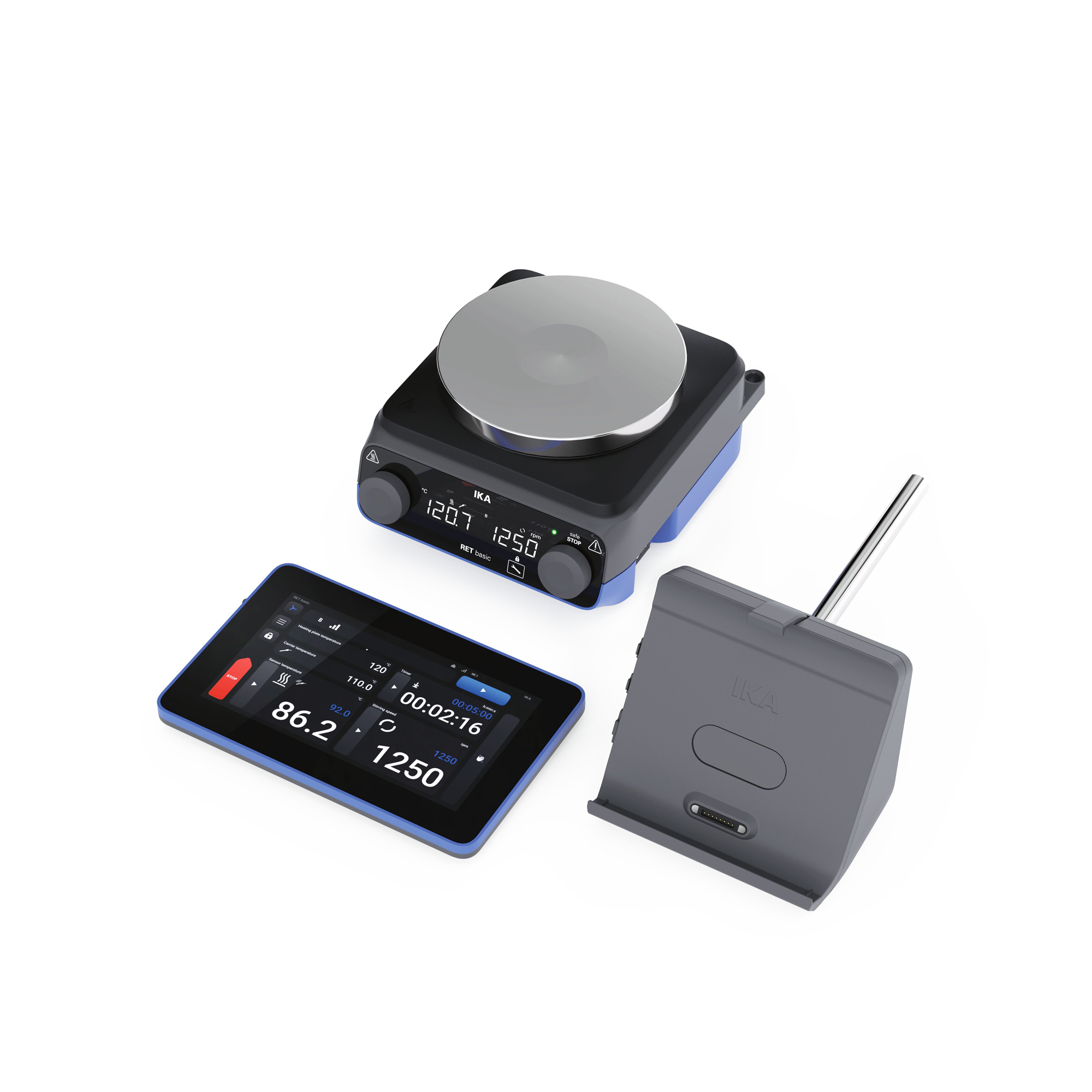

RET basic HUB Solution

brandIKA
catalog number10016572

Filtr: z ogrzewaniem bez ogrzewania Wiele lokalizacji Interfejs RS 232 zew. czujnik temperatury

RET basic HUB Solution Safe remote control and monitoring – ideal for operation in a fume hood The RET basic HUB Solution expands the trusted RET basic to include remote control and monitoring via the IKA HUB. It has been specially developed for applications where heightened safety requirements apply – particularly when operating in a closed fume hood. The IKA HUB allows setting parameters and process data to be viewed and adjusted without having to work directly on the device. This reduces contact with hazardous media and minimises the risk of accidents in line with significantly increased requirements. Greater safety through operation outside the fume hood The HUB.DS docking station included in the scope of delivery allows the IKA HUB to be permanently mounted, e.g. directly on the outside of the fume hood. This ensures the fume hood remains closed throughout the entire experiment, whilst the user still has access to all relevant information at all times. This offers crucial safety benefits for: Working with toxic, volatile or flammable substancesHigh-temperature applicationsLong-term or unattended operation Central control of multiple devices With the IKA HUB, up to five devices can be read out and controlled simultaneously. This simplifies monitoring in more complex experimental setups and supports structured, reproducible workflows in the laboratory. Zakres dostawy RET basic Czujnik temperatury, stal nierdzewna PT 1000.60 H 80 Temperature sensor holder IKAFLON® 30 Magnetic stirring bar IKAFLON® 40 Magnetic stirring bar IKA HUB HUB-DS Docking station for IKA HUB Screwdriver

Need more information?

Ask us about this product — we're happy to help.

price: price on request

similar products: 10016572

properties

automatic change of rotation directionoptional (with IKA HUB)
weight2.3 kg
max. set time5999 min
set time min.1 s
frequency50/60 Hz
speed setting accuracy10 rpm
heat control accuracy with external pt1000 sensor (500ml h2o in 600ml beaker, 40mm magnetic stir bar, 600rpm, 50°C)±0.5 K
heating control accuracy with ets-d5. (500 ml h2o in 600 ml beaker, 40 mm magnetic stirrer, 600 rpm, 50°C)±0.5 K
indication accuracy0.1 K
permissible ambient temperature5 - 40 °C
permissible relative humidity80 %
magnetic dipole length20 - 80 mm
automatic heating function of the heating plate to max. stirring speed (from r.t. to 22°C / time 1 h)+15 K
heat control accuracy of heating plate centre without vessel (at 100°C)±5 K
heat control accuracy with ets-d7 (500ml h2o in 600ml beaker, 40mm stirring bar, 600rpm, 50°C)±0.2 K
heat control accuracy with pt wireless (500ml h2o in 600ml beaker, 40mm stirring bar, 600rpm, 50°C)±0.2 K
ethernet interfacetak
rs 232 interfacetak
usb interfaceUSB-C
wifi interfacetak
WPAN interfacetak
temperature unit°C
direction of rotationprawy
protection class according to din en 60529IP 54
number of mixing stations1
max. mixing volume per mixing station (h2o)20 l
maximum load25 kg
working plate materialStop aluminium
min. operating temperature (with external cooling)-20 °C
heating power800 W
motor output power9 W
voltage220–230 V
speed deviation (no load, rated voltage, 1500 rpm, + 25°C)±2 %
ph measurementoptional (with ETS-D7, PT wireless)
viscosity profile measurementoptional (with IKA HUB)
timertak
programsoptional (with IKA HUB)
external temperature sensor connectionPT1000, ETS-D5, ETS-D7, PT wireless
heating rate (1 L H2O in H1500)9 K/min
heating controlControl knob (Rotating / Pressing)
speed controlControl knob (Rotating / Pressing)
adjustable safety temperature50 - 360 °C
setpoint resolution of fluid temperature0.1 K
setpoint resolution of heating plate temperature1 K
periodic modeoptional (with IKA HUB)
pt 1000 fluctuations – din en 60751, class a≤ ± (0.15 +0.002xITI) K
actual value on speed displayLED
set value on speed displayLED
set value on temperature displayLED
actual set value on temperature displayLED
timer indicatorLED
sensor detection in mediumtak
dipole break detectionoptional (with IKA HUB)
dimensions (w × h × d)160 x 100 x 200 mm
working plate dimensionsØ 135 mm
rotation range50 - 1700 rpm
pt1000 temperature measurement range-20 - 340 °C
heating temperature rangetemp. pokojowa + samoogrzewanie przyrządu - 340 °C
set temperature range0 - 340 °C
principle of motor operationBezszczotkowy, DC
power supply820 W
power supply (standby mode)0.45 W
