T 10 battery ULTRA-TURRAX®
- brand: IKA
- catalog number: 20103418
Filtr: Wskaźnik obrotów Bezszczotkowy silnik DC

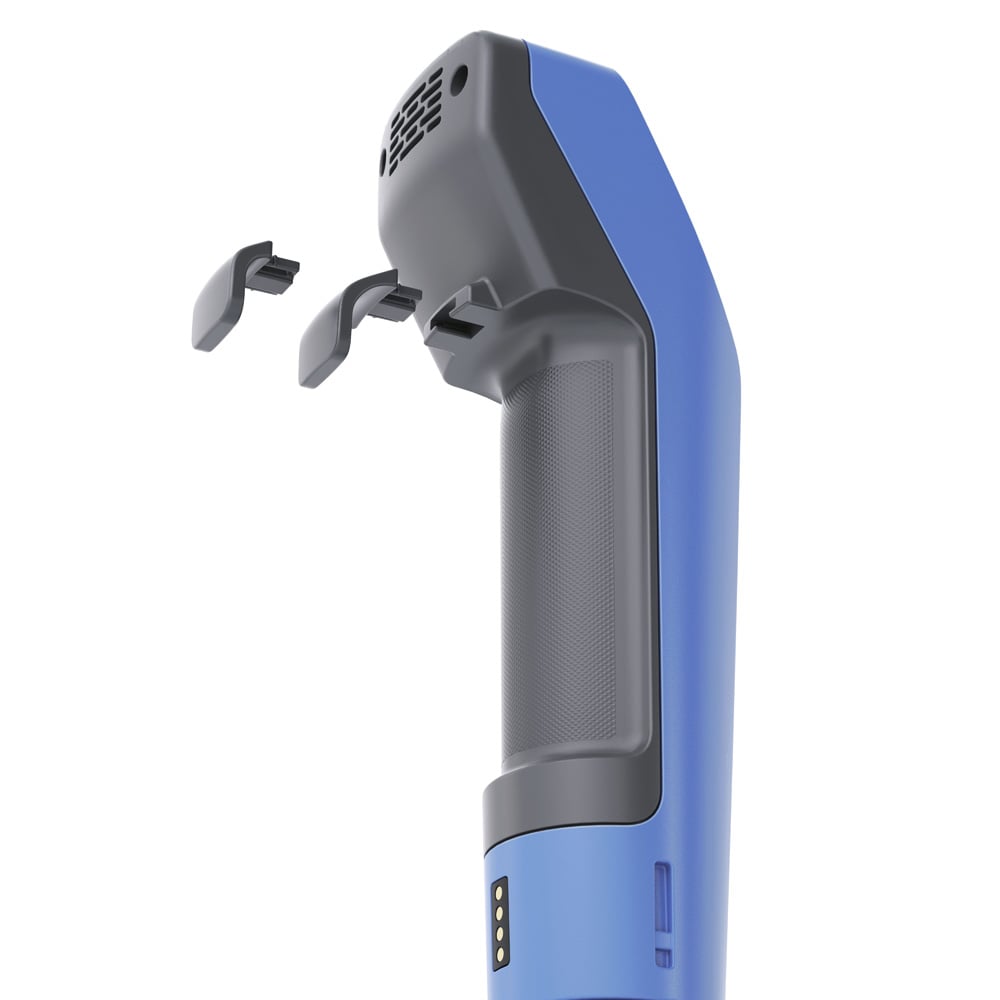

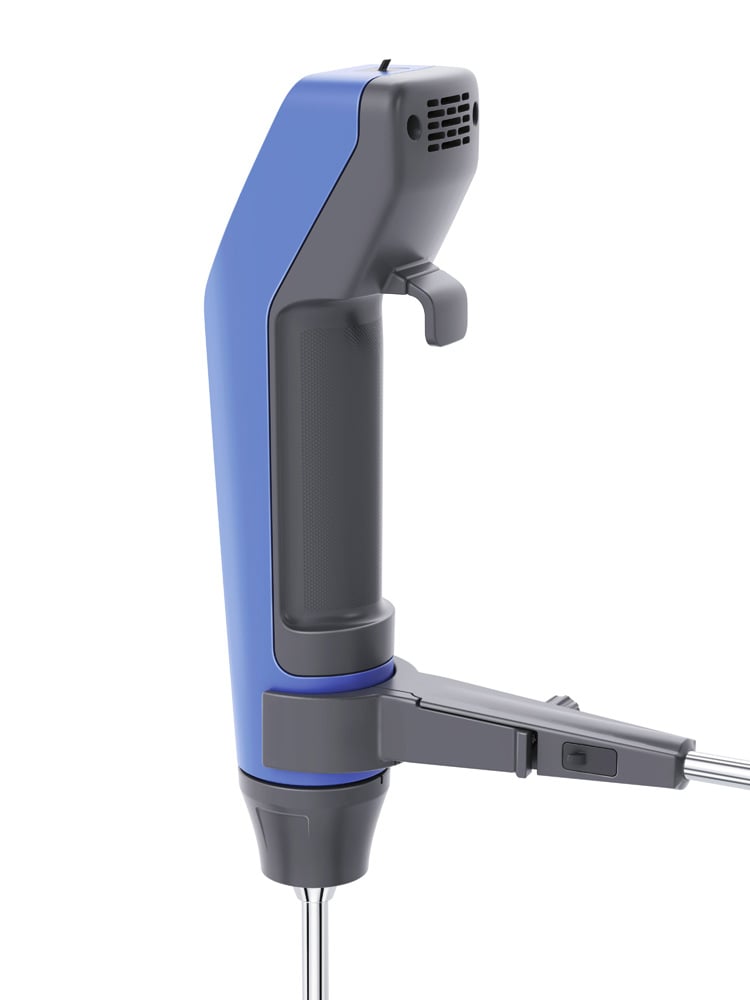

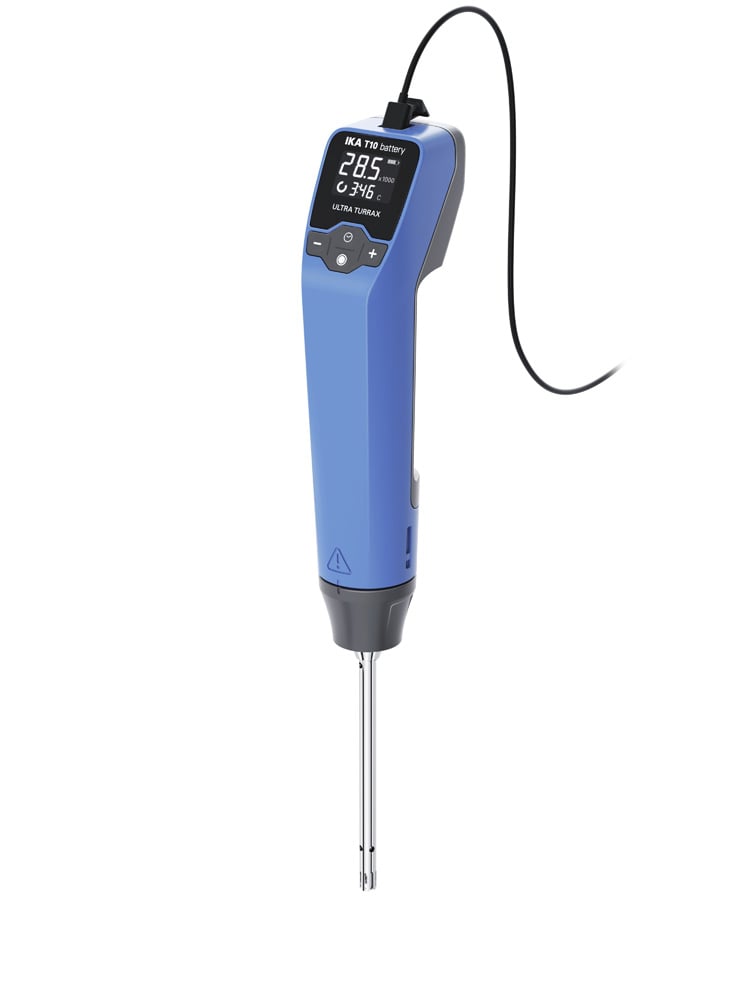

T 10 battery ULTRA-TURRAX® IKA’s first battery-operated, cordless homogeniser. Designed for small volumes up to 100ml (H2O), this homogeniser can even be operated inside of a microcentrifuge tube. The T 10 battery is ideal for on-site sampling operations or use in a biosafety cabinet or laminar flow cabinet due to its compact and portable design and the fact that it does not require an electricity supply in order to operate. It is also ideal as a tissue homogeniser to break down complex tissues. A wide range of dispersing tools are available to suit a variety of application needs such as blunt-edged, sawtooth, stainless steel and plastic types. Features: Large LCD display allows for easy parameter viewing Brushless DC motor for quieter operation Precise speed setting with numerical values Timer and counter functions for reproducible and precise operation Rechargeable battery with two charging options: Either directly through a USB-C cable or via a charging clamp Labworldsoft compatible for remote control and data export and documentation The dispersing tool is not included in the scope of delivery. Zakres dostawy T 10 battery ULTRA-TURRAX®
properties
| batteries included with the product? | tak |
|---|---|
| battery cell type | Custom LiPo / 18650-3S1P |
| battery energy content | 34.56 Wh |
| battery voltage | 10.8 V |
| battery weight | 160 g |
| weight | 0.5 kg |
| operating time off | 5 min |
| operating time on | 10 min |
| permissible ambient temperature | 5 - 40 °C |
| permissible relative humidity | 80 % |
| boom length | 100 mm |
| how is the battery packaged | w zakresie urządzenia |
| usb interface | USB-C |
| protection class according to din en 60529 | IP 30 |
| max. liquid viscosity | 200 mPas |
| input motor power | 30 W |
| max. input power | 45 W |
| motor output power | 25 W |
| dc voltage | 15 V= |
| number of batteries | 3 |
| speed deviation | 5 % |
| current consumption | 3000 mA |
| noise level without tip | 65 dB(A) |
| timer | tak |
| speed control | bezstopniowa |
| mode of operation | wsadowa |
| rotation indicator | LCD |
| timer indicator | LCD |
| dimensions (w × h × d) | 53 x 239 x 70 mm |
| volume range (H2O) | 0.0005 - 0.1 l |
| rotation range | 8000 - 30000 rpm |
| principle of motor operation | Bezszczotkowy, DC |
| power supply (standby mode) | 0.1 W |
| boom diameter | 8 mm |
