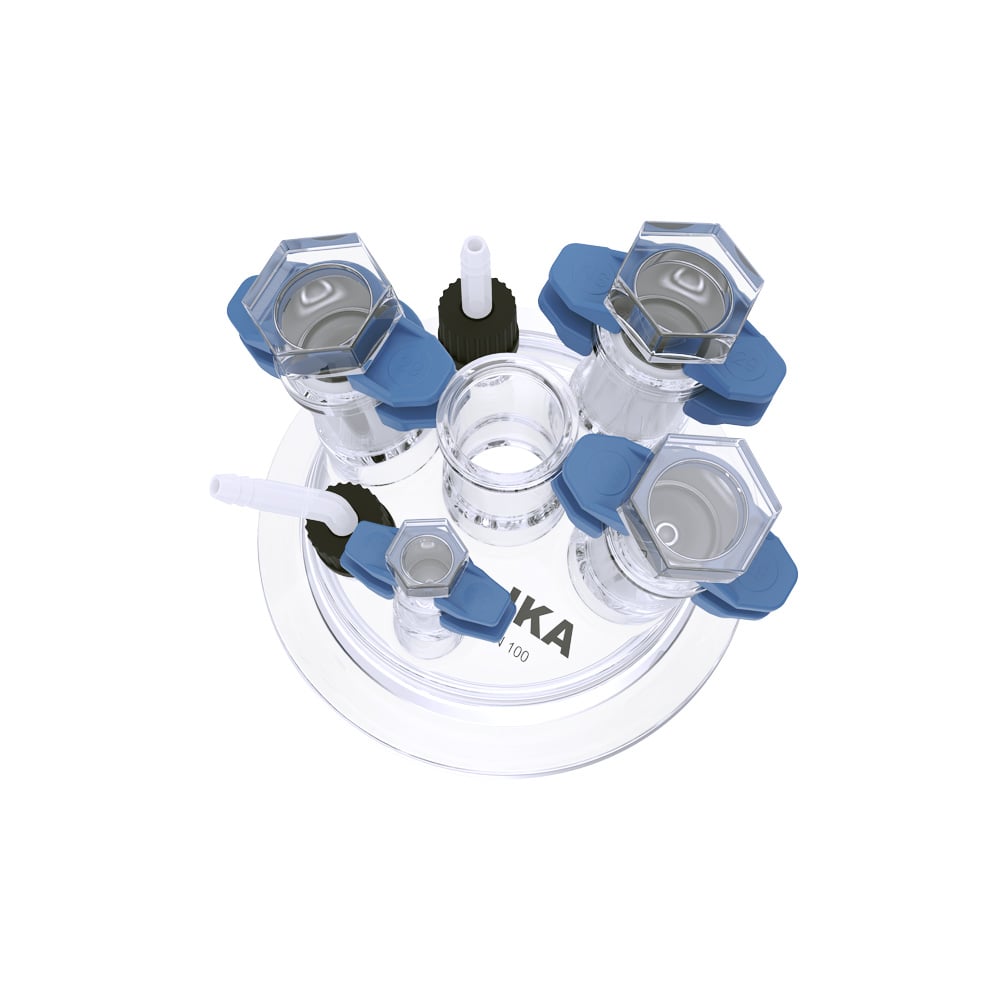

SY 100.2 Reactor lid
- brand: IKA
- catalog number: 20116965
SY 100.2 Reactor lid Pokrywa reaktora do systemu reaktora EasySyn. Rozmiar kołnierza: DN 100. Odpowiednia do zbiorników reaktora o pojemności 100 ml (SY 100 i SY 100 D), 250 ml (SY 250 i SY 250 D), 500 ml (SY 500 i SY 500 D) i 1000 ml (SY 1000 i SY 1000 D). Otwory: 4 x NS 29/32, 1 x NS 14/23, 2 x GL 18
properties
| max. pressure | ciśnienie atmosferyczne |
|---|---|
| reactor lid material | Szkło borokrzemowe 3.3 DIN ISO 3585 |
| achievable vacuum | 3 mbar |
| Side cover connections | 3x NS 29/32, 1x NS 14/23, 2x GL18 |
| Central cover connection | NS 29/32 |
| operating temperature | -50 - 230 °C |
| Type of flange | wg. DIN 12214 |
| flange dimension | DN100 |
| height (room dimension) | 95 mm |
| vacuum application | tak |
| Outer diameter | 138 mm |
